Co-reach: Melting, Granulating, Flaking, Cooling
Utilizing the low melting point characteristics of materials, and considering the viscosity range when materials are in a molten state, a special distribution device spreads the molten liquid evenly onto a moving steel belt (or is adhered to a rotating drum) that moves at a constant speed beneath it. The continuous spray cooling system underneath the steel belt (or belt) cools and solidifies the material during its transportation, thereby achieving the desired shape.
Suitable for a variety of materials that require shaping with melting points (or softening points) between 50°C and 300°C, as well as materials with "supercooled crystallization" characteristics.
Product shapes can be hemispherical, flake, strip, spindle-shaped, square, and other forms, with production rates ranging from 50 kg to 7000 kg per hour.

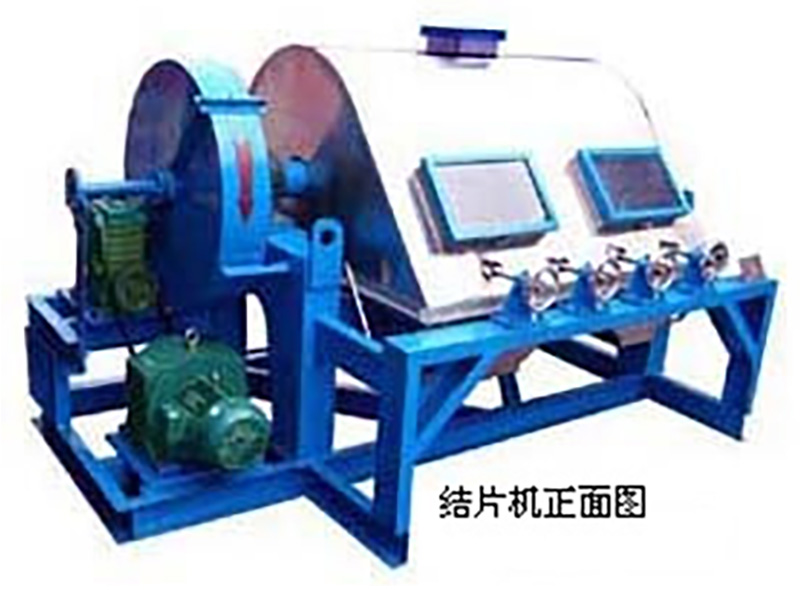

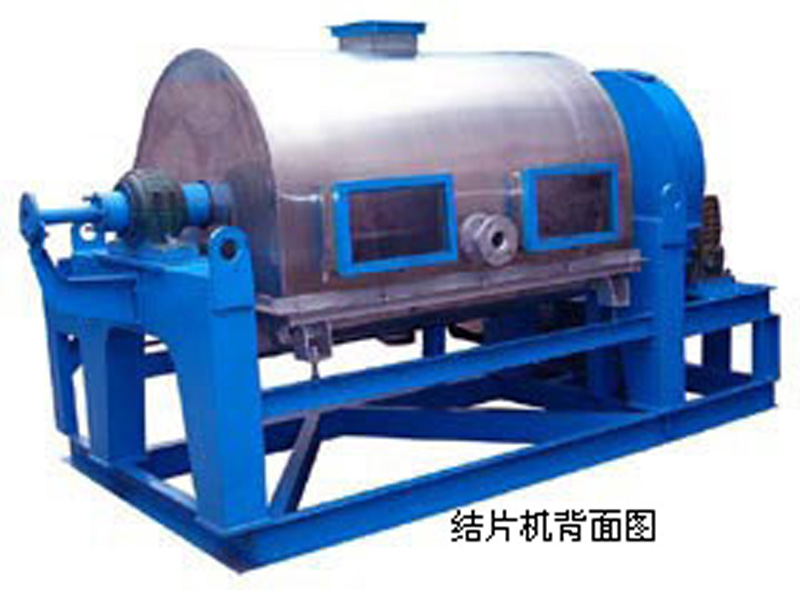

ZGJ series drum flakers are suitable for various materials with melting points below 400°C. They use a siphon-type spray cooling method and a segmented blade system to produce irregular flakes. Typical materials include phthalic anhydride, maleic anhydride, sulfur, naphthalene, sodium sulfide, fatty alcohols, and more.
|
I.Working Principle： This equipment serves dual purposes: drying and flaking. The entire process of film formation, dehydration or cooling, scraping, and obtaining dried or flaked products is completed within one rotation cycle of the drum, typically within 5-20 seconds. The thickness of the wet material film is generally 0.5-1.5 mm. Drum Flaking: This process involves cooling and crystallizing the material. The molten material in the feed pan comes into contact with the cooled drum, forming a film on the drum surface. Through intensified heat transfer via atomization, the film cools, solidifies, and crystallizes. The crystallized film is then scraped off by a blade, resulting in flake products. This method is suitable for low-melting-point materials to form flakes in one step. |
 |
II. Equipment Features：
Technological Achievement:
The equipment is a result of domestic technological innovation, producing significant advancements in major equipment science and technology.
Side Blades:
The equipment is equipped with side blades to prevent material accumulation at the drum sides.
Compact Structure:
The equipment has a compact design and occupies a small footprint.
High Drum Precision:
The drum has high precision and adopts multiple sets of blades with adjustable speed.
Versatile Functionality:
The equipment is multifunctional, capable of both flaking and drying.
Semi-pipe Jacketed Feed Pan:
The feed pan is jacketed for safe and reliable operation, adapting to the material.
|
III. Suitable Applications： Flaking: Polymer Products: Polyethylene oligomers, petroleum resins, oxidized polyethylene, etc. Organic Chemical Products: Phthalic anhydride, maleic anhydride, naphthalene, fatty alcohols, chloroacetic acid, guanidine nitrate, bisphenol A, sodium acetate, glycerides, etc. Inorganic Chemical Products: Calcium chloride, sodium hydrosulfide, sodium sulfide, caustic soda, etc.
·Drying: Dyes: Sulfur dyes, indigo dyes, etc. Inorganic Solutions: Sodium dihydrogen phosphate, sodium phosphate, magnesium chloride, etc. Food and Pharmaceutical Solutions: Skimmed milk, milk, traditional Chinese medicine emulsions, dextrin, yeast, animal and plant gums, alpha-starch, etc.
|
 |
IV. Technical Specifications：
|
Model
|
Drum Dimensions mm
|
Motor Power kW
|
Approximate Dimensions (mm)
|
||
|
L |
W |
H |
|||
|
GT-1 |
600X600 |
2.2∽3 |
2400 |
1480 |
1410 |
|
GT-3 |
800X1200 |
3∽5.5 |
3360 |
2000 |
1600 |
|
GT-4.5 |
1200X1200 |
5.5∽7.5 |
3730 |
2250 |
2050 |
|
GT-7.5 |
1400X1800 |
5.5∽11 |
4460 |
2460 |
2350 |
|
GT-9 |
1600X1800 |
7.5∽15 |
4460 |
2600 |
2550 |
|
GT-22 |
2300X3000 |
11∽18.5 |
7200 |
3900 |
3350 |

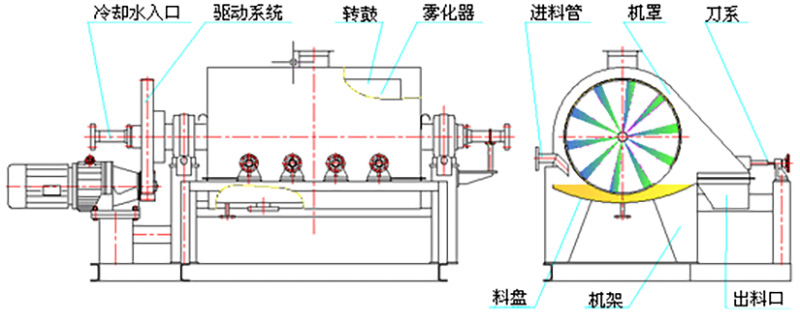

V. Structural Schematic：
VI. Typical Users
Hebei Xinji Chemical Plant: Sulfur Flaking
Guizhou Tianzhu: Sulfur Flaking
Dushanzi Refinery: Phthalic Anhydride Flaking
Guangzhou Borax: Maleic Anhydride Flaking
Xinjiang Tianshan: Sodium Sulfide Flaking
